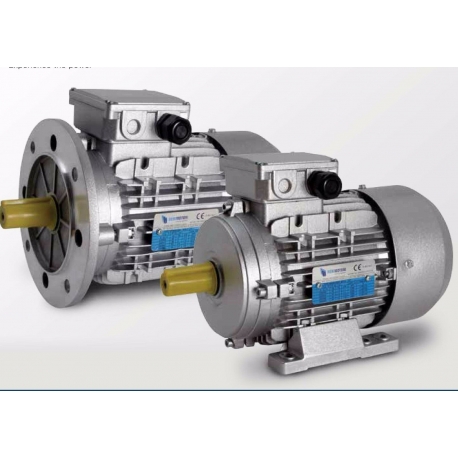

MOTORI NERI MADE IN ITALY THREE-PHASE 1,5 KW - 2HP
FEATURES:
WRAPPED STATORS: For the majority of production, magnetic sheets with high quality are used, which in any case ensure constant performance and high yields. The copper used is impregnated with a double layer of insulating enamel to ensure a high resistance to electrical, thermal and mechanical stress.
ROTORS: They are die-cast aluminum squirrel cages
KEYS: They are made of C40 steel of unified dimensions according to CEI IEC 72-1. The thread diameters of the standard shafts, in accordance with DIN 332. Housing (according to CEI-IEC 72-1).
MOTOR TERMINAL BOARD: The terminal board, in the case of B3 housing with feet, is arranged at the top as standard
VENTILATION: It is obtained by means of an impeller with bidirectional radial blades keyed on the motor shaft IC 411. Made of plastic, it has a high operating temperature
FAN COVER: Made of painted / galvanized sheet metal.
NOISE: The measurements of sound pressure
and the sound power were performed on three-phase motors, one meter away from the machine, weighted according to curve A (ISO R 1680). These values measured at 50 Hz increase on average by 4 dBA per 60 Hz.
TECHNICAL FEATURES:
POWER: 2HP - 1.5KW
RPM: 2770
BRAND: NERI
SHAFT DIAMETER: 19MM
MEASURES: A: 125 B: 100 C: 50 D: 19 E: 40 F: 6 G: 15.50 H: 80 K: 10 AB: 160 AC: 170 AD: 135 L: 285
